Continuations Specification

Introduction

Overview

An app execution may require arbitrarily many steps, but each proof covers a bounded number of steps. OpenVM thus splits execution into segments and produces one proof per segment. Continuation is the process of recursively aggregating segment proofs into (usually) a single proof by:

1. Verifying child proofs from adjacent segments
2. Verifying public value consistency between adjacent child proofs
3. Outputting a proof attesting to 1 and 2

This forms an aggregation tree with multiple layers, where each layer aggregates child proofs from the layer below. There are six layer types:

The first five types each correspond to a unique STARK-based circuit. The static layer is handled separately — it re-encodes a root Proof for on-chain verification. Because this encoding must be constant-sized, the root Proof size must also be fixed.

Circuit and Prover Definitions

A circuit is a set of AIRs that collectively constrain one or more trace matrices and expose a fixed set of public values. A subcircuit is a subset of a circuit's AIRs.

A prover is a struct that generates a proof for a specific circuit given appropriate inputs. We distinguish:

• Basic provers — generate a single aggregated Proof from child Proofs. Each basic prover corresponds to a specific aggregation subcircuit (see Layer Architecture for more information).
• SDK provers — orchestrate basic provers to produce client-facing proof formats (ContinuationVmProof, VmStarkProof, EvmProof) or their intermediate forms.

Client-Facing Proofs

There are three client-facing proof types:

Aggregation Pipelines

Each client-facing proof type requires a specific aggregation pipeline:

Diagram of a potential STARK proof aggregation tree with 2:1 max leaf aggregation and 3:1 max internal aggregation.

SDK Provers

For convenience the SDK provides several SDK provers, which orchestrate basic provers to produce client-facing proof formats. Most wrap disjoint aggregation pipeline sections; we informally denote these "component SDK provers".

StarkProver and EvmProver use these component SDK provers to encapsulate end-to-end STARK and EVM proving.

Layer Architecture

Every non-app STARK-based layer has a circuit composed of exactly two subcircuits:

• A verifier subcircuit — verifies child proofs individually
• An aggregation subcircuit — enforces public value consistency across child proofs and exposes public values for the next layer

Different layers may share the same verifier subcircuit or the same aggregation subcircuit, but each layer's circuit is a unique pairing.

Note that leaf, internal-for-leaf, and internal-recursive all share the inner aggregation subcircuit and therefore have the same public value layout. Root reuses the internal-recursive verifier subcircuit but pairs it with a different aggregation subcircuit.

Verifying Key Convergence

Each verifier subcircuit is parameterized by the child proof's verifying key (child_vk). Because the verifier subcircuit depends on child_vk, each layer initially has a different circuit:

• leaf circuit is derived from app_vk
• internal-for-leaf circuit is derived from leaf_vk
• internal-recursive circuit is derived from internal_for_leaf_vk

However, the system is designed so that the circuit converges at the internal-recursive layer. This means:

1. The verifier subcircuit derived from internal_recursive_vk is identical to the internal-recursive verifier subcircuit itself
2. An internal-recursive Proof can be used as a child proof for another internal-recursive proof
3. For fixed internal system parameters, the internal-recursive circuit is the same for any app_vk

This convergence property enables unbounded recursive aggregation.

Verifier Subcircuits

Shared Structure

All verifier subcircuits are semantically equivalent — each contains the same subset of AIRs that individually verify child proofs. However, the actual circuit constraints and parameters are derived from:

1. The child proof's verifying key (child_vk)
2. The maximum number of child Proofs this subcircuit can verify ($N_\mathsf{leaf}$ for leaf, $N_\mathsf{internal}$ for internal, and 1 for root)

Because of the dependency on child_vk, different layers have different verifier subcircuits until convergence at internal-recursive.

Constraint DAG and Cached Traces

A verifier subcircuit must verify that a child proof satisfies the constraints defined by child_vk. These constraints are encoded as a constraint DAG, where each node represents a symbolic expression over trace values. This DAG includes interaction constraints.

To avoid recomputing the DAG in-circuit, verifier subcircuits use a cached trace: before proving, the DAG is serialized per-node into a cached trace, committed via SWIRL's stacked PCS, and the commitment is exposed as a public value. Each such commitment is paired with the child VK's field pre-hash (vk_pre_hash) to form a VK commit (VkCommit):

VkCommit {
    cached_commit: [F; DIGEST_SIZE],  // PCS commitment of the cached trace
    vk_pre_hash:   [F; DIGEST_SIZE],  // field pre-hash of the child MultiStarkVerifyingKey
}

The four VK commits are:

Each *_vk_commit is checked for consistency by the aggregation subcircuit and/or the final client-facing verifier. The cached_commit component is verified against the PCS commitment received from ProofShapeModule via the CachedCommitBus, while the vk_pre_hash component is verified via a separate PreHashBus.

As described in Verifying Key Convergence, the verifier subcircuit derived from internal_recursive_vk is identical to internal-recursive, enabling unbounded recursion. The internal-recursive verifier subcircuit can thus verify its own Proofs.

Aggregation Subcircuits

There are 2 aggregation subcircuit types: inner and root. Each type has an associated basic prover.

App Public Values and Shared Constraints

App public values are the public values exposed by the app layer. They are propagated through all aggregation layers.

• initial_pc: F — starting PC value of the program/segment
• final_pc: F — final PC value of the program/segment
• exit_code: F — exit code of the program/segment
• is_terminate: F — boolean flag indicating whether this segment terminated the program
• initial_root: Digest — Merkle root of the initial memory state
• final_root: Digest — Merkle root of the final memory state

All aggregation subcircuits enforce segment adjacency constraints on the app public values. Given several adjacent segments, the aggregation subcircuit constrains that:

1. The final_pc and final_root of each non-terminal segment equal the initial_pc and initial_root of the segment immediately following it
2. Non-terminal segments have is_terminate == 0 and exit_code == DEFAULT_SUSPEND_EXIT_CODE
3. The terminal segment has is_terminate == 1 and exit_code == ExitCode::Success

The aggregation subcircuit also exposes public values necessary for either further recursive aggregation or final proof verification.

Inner Aggregation Subcircuit

The inner subcircuit takes up to $N$ child Proofs and does not constrain the user public values' presence in memory. Its output Proof is meant to either be recursively aggregated or used as the Proof component in a VmStarkProof.

Public Values

Public values are processed by VmPvsAir and VerifierPvsAir. The inner subcircuit re-exposes the app public values (excluding user_public_values) and adds the following verifier-specific public values, which are common over all inner layers:

• Program Commit
  • program_commit: Digest — cached trace commit of the app circuit's ProgramAir
• Aggregation Public Values
  • internal_flag: F — ternary flag indicating which verifier subcircuit this proof is for:
    • 0 for leaf
    • 1 for internal-for-leaf
    • 2 for internal-recursive
  • app_vk_commit: VkCommit — VK commit (cached trace commit + VK pre-hash) for the leaf verifier subcircuit, derived from app_vk
  • leaf_vk_commit: VkCommit — VK commit for the internal-for-leaf verifier subcircuit, derived from leaf_vk
  • internal_for_leaf_vk_commit: VkCommit — VK commit for the first (index 0) internal-recursive layer verifier subcircuit, derived from internal_for_leaf_vk
• Internal Recursion-Related Public Values
  • recursion_flag: F — ternary flag indicating which internal-recursive layer this proof is for:
    • 0 for non-internal-recursive layers
    • 1 for the first (index 0) internal-recursive layer
    • 2 for subsequent internal-recursive layers
  • internal_recursive_vk_commit: VkCommit — VK commit for each subsequent (index > 0) internal-recursive layer verifier subcircuit, derived from internal_recursive_vk

The program_commit should be set at every layer, but the flags and *_vk_commits should be set according to which layer we are currently proving for. Unset *_vk_commits are filled with 0s.

Constraints

VerifierPvsAir constrains that:

• App segment proofs do not have inner subcircuit-specific public values
• Non-app child proofs within a layer have the same verifier-specific public values
• Child proof verifier-specific public values are set according to the table above
• Output proof verifier-specific public values match the child proofs':
  • Flags are incremented properly
  • The next unset *_vk_commit is set (if any remain unset)
  • Previously defined *_vk_commits match between child and output

Root Aggregation Subcircuit

The root subcircuit takes a single internal-recursive child Proof and does constrain the user public values' presence in memory. Its output Proof is meant to be the static layer input.

Public Values

The root subcircuit exposes a new set of public values for the static verifier. Segment adjacency public values are no longer needed since adjacency has already been enforced.

• user_public_values: Vec<F> — user-defined public values stored in the public values address space during app execution
• app_exe_commit: Digest — hashed combination of:
  • The app-level ProgramAir cached trace commit
  • The Merkle root of the starting app memory state (initial_root)
  • The initial app program counter (initial_pc)
• app_vm_commit: Digest — commitment to the app VM verifier key, computed by hashing the 6 components of the child proof's app, leaf, and internal-for-leaf VK commits (cached_commit and vk_pre_hash for each) via hash_slice

Constraints

The root subcircuit constrains the child proof's public values:

• is_terminate == 1 and exit_code == ExitCode::Success (successful app termination)
• internal_flag == 2 and recursion_flag is 1 or 2 (child is internal-recursive)
• The verifier subcircuit's SymbolicExpressionAir cached commit and internal_recursive_vk_commit are verified depending on recursion_flag:
  • recursion_flag == 1: cached commit is verified against internal_for_leaf_vk_commit.cached_commit, and internal_recursive_vk_commit must be unset (all zeros)
  • recursion_flag == 2: cached commit is verified against internal_recursive_vk_commit.cached_commit, and internal_recursive_vk_commit (both cached_commit and vk_pre_hash) matches a pre-generated constant

The root subcircuit also constrains its own public values:

• user_public_values were in the final memory state's public values address space, constrained by:
  • Computing the Merkle root of user_public_values, denoted user_pvs_commit
  • Constraining that a Merkle proof (where the path to the root depends on the MemoryDimensions) exists between user_pvs_commit and final_root
• app_exe_commit is computed as specified above
• app_vm_commit is computed from the child proof's app_vk_commit, leaf_vk_commit, and internal_for_leaf_vk_commit (using all 6 cached_commit and vk_pre_hash components) as specified above

Deferral Integration

When the VM uses the deferral framework, deferral circuit proofs must be incorporated into the main aggregation tree. This section describes how deferral hook proofs join the continuation pipeline at the internal-recursive level.

Deferral Aggregation Overview

Each deferral circuit C_i produces its own proofs, which are aggregated through a separate per-circuit aggregation tree (leaf → internal-for-leaf → internal-recursive) using a deferral-specific inner aggregation subcircuit. This subcircuit builds Merkle trees of the input and output commits and propagates deferral VK commits.

The final internal-recursive proof for each C_i is then passed to a deferral hook layer, which:

1. Verifies the child proof
2. Converts the input and output commit Merkle roots into onion hashes (the hash-onion accumulators used by the VM)
3. Exposes DeferralPvs containing initial_acc_hash and final_acc_hash (the initial and final deferral accumulator values as memory subtree Merkle leaves) and depth (the Merkle subtree depth)
4. Computes and exposes a def_hook_commit from the deferral circuit's VK commits

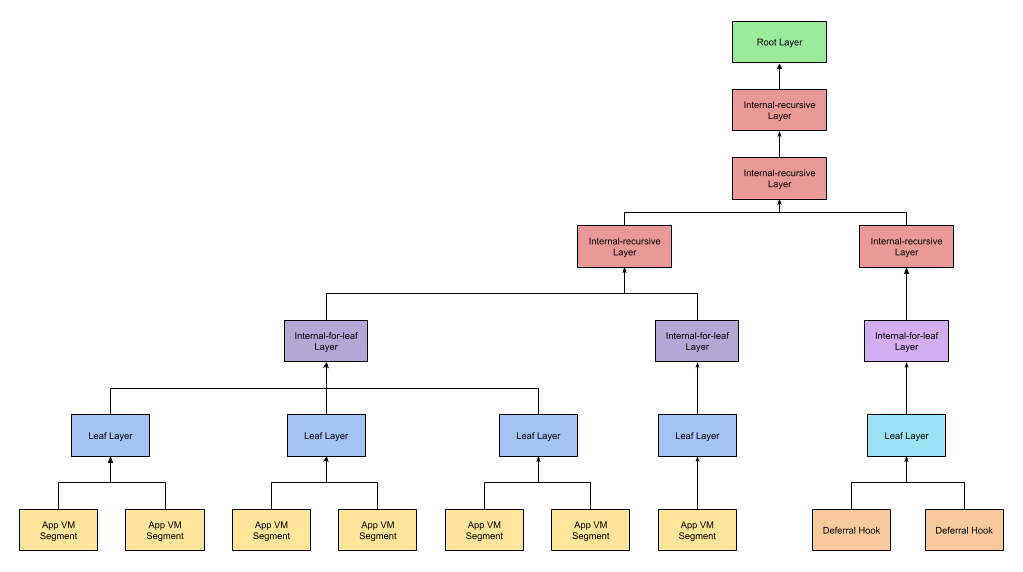

Combined VM-Deferral Tree

Deferral hook proofs are incorporated into the main aggregation tree at the internal-recursive level. The inner aggregation subcircuit supports a deferral_flag that indicates the type of child proofs:

At the leaf and early internal layers, VM segment proofs (deferral_flag=0) and deferral hook proofs (deferral_flag=1) are aggregated separately. When proofs of both types are combined in the same internal-recursive layer, the output proof has deferral_flag=2.

DeferralPvsAir processes and propagates the following DeferralPvs through the tree:

• initial_acc_hash: Digest — Merkle root of all initial deferral accumulators aggregated so far
• final_acc_hash: Digest — Merkle root of all final deferral accumulators aggregated so far
• depth: F — depth of the Merkle subtrees above

When multiple deferral hook proofs are combined, the inner subcircuit Merklizes their initial_acc_hash and final_acc_hash values together, incrementing the depth.

Root Verifier Deferral Constraints

The inner aggregation subcircuit also computes and propagates a def_hook_commit — a commitment to the deferral hook verifying key, derived by hashing the VK commit components of deferral-only child proofs. This is computed at any internal-recursive layer where internal_flag == 2 and deferral_flag == 1, and propagated unchanged through subsequent layers. The def_hook_commit ensures that the correct deferral circuits were used.

When deferral is enabled, the root subcircuit additionally constrains:

• The child proof's def_hook_commit matches a pre-generated constant
• The child proof's initial_acc_hash was present in the initial memory state at the deferral address space region
• The child proof's final_acc_hash was present in the final memory state at the deferral address space region

This binds the deferral accumulators observed during VM execution to the deferral proofs aggregated in the combined tree, ensuring end-to-end consistency.
